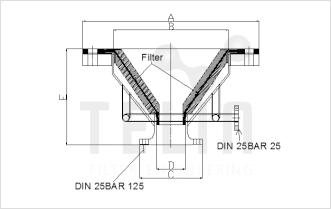

  • Dimension
    (MM)    		 Code No. Allowable
    Pressure
    (bar)    		 Material
    TL-C-600 TL-C-755 TL-C-900 25 · Filter
    : SUS316L
    · Rib
    : SUS304
    · Housing
    : SUS304
    A 600 755 900
    B 300 493.11 600
    C 220 270 300
    D 100 123.4 150
    E 300 413 500

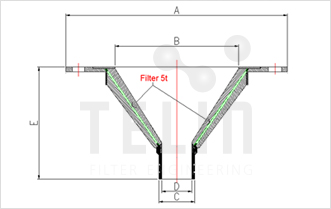

  • Dimension
    (MM)    		 Code No. Allowable
    Pressure
    (bar)    		 Material
    TL-CF-600 TL-CF-755 TL-CF-900 25 · Filter
    : SUS316L
    · Rib
    : SUS304
    A 600 755 900
    B 230 421.8 530
    C 100 122.4 152
    D 80 101.8 132
    E 280 380 460

* Standard 제품 외의 사양은 주문제작 가능
