BUSINESS

EQUIPMENT

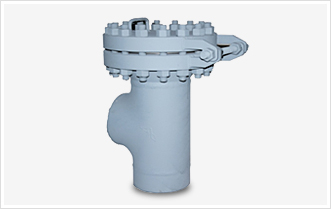

STRAINER

Providing total service of the test- strainer, design, plan, and manufacturing needed for each process.

* SPECIFICATIONS

Stress analysis code ASME Section VIII Division 1.
Connection Flange JIS B 2210, ANSI B 16.5, DIN, etc.
Flange Rating #150, #300, #400, #600
Materials Body Carbon Steel, Stainless Steel, etc.
Filter Carbon Steel, Stainless Steel etc.
Packing NBR, EPDM, PTFE, Viton, Non-Asbestos, SWG, etc.
Punched pipe Ø2~ Ø12
Mesh #2 ~ #400 / 111000 ~ 35micro
Lifting Handle, Davit, Lug, etc.
Cover bolting Hinge, Stud, Hexagon, etc.
Vent / Drain type Screw, Flange, Valve, etc.
Coating Epoxy, NBR, PE, Hot Dipped Galv, etc.
Liquid name Oil, Water, etc.

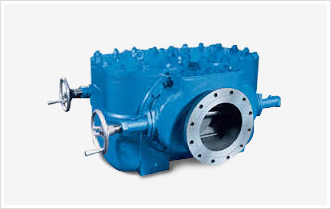

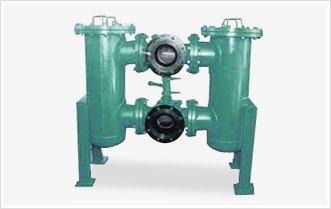

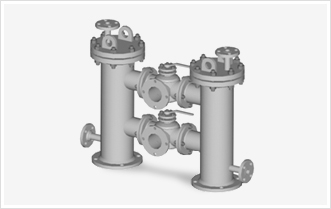

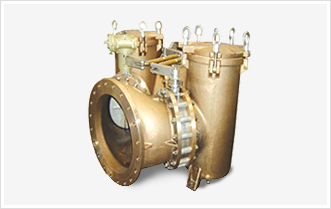

TLS-DUPLEX TYPE

  • BUTTERFLY VALVE TYPE
  • MULTI TYPE
  • 3-WAY BALL VALVE TYPE

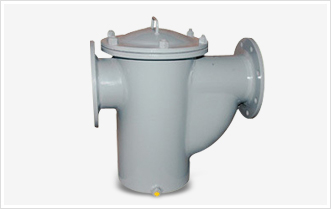

TLS-BUCKET TYPE (SIMPLEX)

  • CASING
  • STEEL PLATE

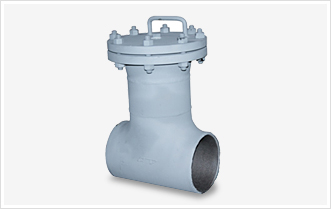

TLS-TEE TYPE

  • STRAIGHT FLOW TYPE
  • ANGLE FLOW TYPE

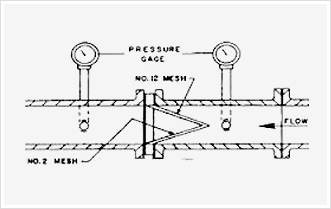

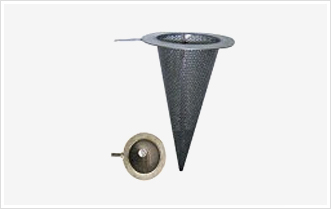

TLS-CON TYPE (TEMPORARY -STRAINER)

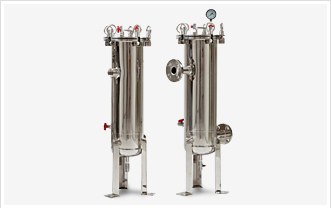

FILTER HOUSING

Providing total service of the test - housing design, plan, and manufacturing needed for filter system.

* SPECIFICATIONS

Stress analysis code ASME Section VIII Division 1.
Connection Flange JIS B 2210, ANSI B 16.5, DIN, etc.
Materials Housing Carbon Steel, Stainless Steel, etc.
Packing NBR, EPDM, PTFE, Viton, Non-Asbestos, SWG, etc.

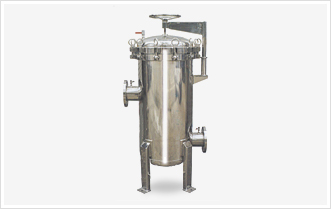

FILTER HOUSING

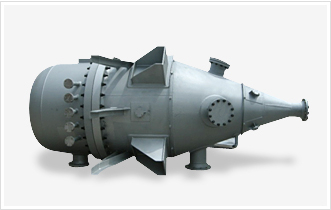

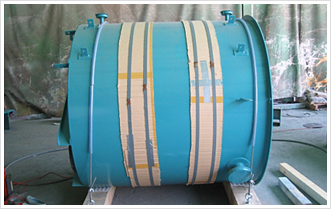

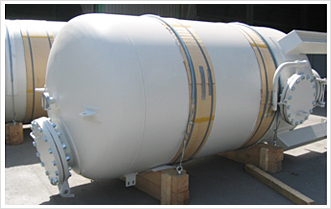

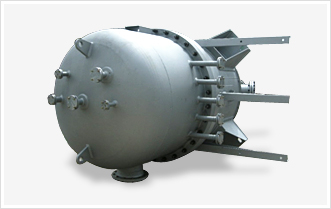

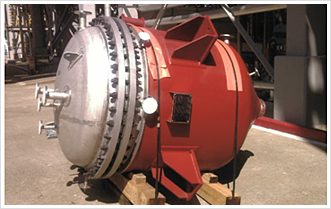

Pressure Vessel & Tank

Providing total service -design, plan, and manufacturing of the tank and pressure container needed

* SPECIFICATIONS

Stress analysis code ASME Section VIII Division 1.
Connection Flange JIS B 2210, ANSI B 16.5, DIN, etc.
Materials Carbon Steel, Stainless Steel, onze, etc.

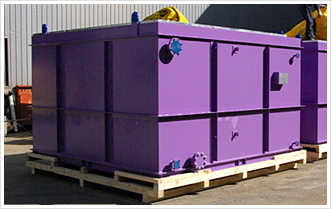

Pressure container and tank
