Advanced Solutions

for the most efficient Filtration and smart Process management.

BUSINESS

Filter element

  • Tube Filter
  • Cylinder Filter
  • Cone Filter
  • Disc Filter
  • Plate Filter(Plate type)
  • Filter Grade: 0.1, 0.3, 0.5, 1, 3, 5, 7, 8, 10, 15, 20, 30, 50, 100, 200μm
  • Length: 5mm~1500mm
  • Thickness: 1.5 ~ 10.0mm
  • Filter Media: SUS304L, SUS316L, MONEL 400, INCONEL600, 625, HASTELLOY C22/C276/X, TITANIUM
  • SUS316L - 400°C, INCONEL 600 - 625°C, HASTELLOY 650-800°C, MONEL 500°C
  • Stable and regular pore formation through sintering process
  • Outstanding durability and corrosion resisting
  • Back flush through high temperature / high pressure steam, chemicals and burning process
  • Superior durability comparing other material (paper, plastic, ceramic)
  • oil chemical, fine chemistry, oil refining industry, semiconductor industry, power plant, aviation / space, water treatment industry, nuclear energy, food manufacturing industry, drug industry etc.

Standard Product code and specification

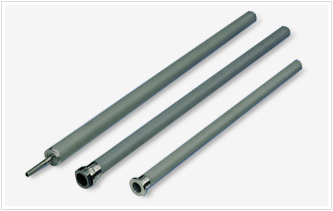

Tube Filter

  • Filter Grade: 0.5~ 200m
  • External diameter (OD) range: 06.00 319mm
  • Thickness (T) range: 1.5 ~ 10.0T
  • Lenght (L): 5~1500mm

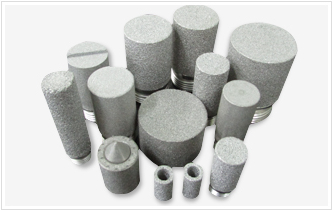

Cylinder Filter

  • Filter Grade: 0.5, 1, 3, 5, 7, 10, 15, 20, 30, 50, 100, 200μm
  • External diameter (OD) range: Ø3.00~ 70.0mm
  • Thickness (T) range: 1.0~10(T)mm
  • Lenght (L): 3.0~90.0mm

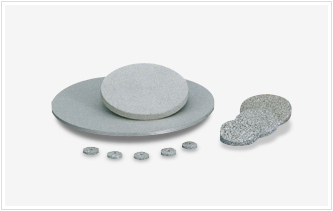

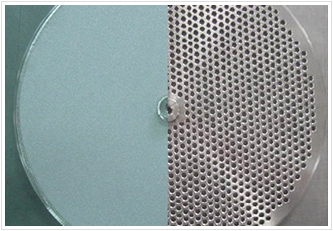

Disc Filter

  • Filter Grade: 0.5, 1, 3, 5, 7, 10, 15, 20, 30, 50, 100, 200μm
  • External diameter (OD) range: 01.30~316.0mm
  • Thickness (T) range: 1.5~72.0 (T)mm

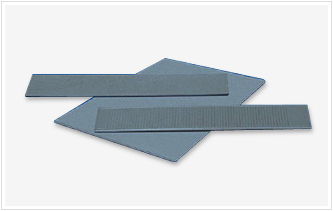

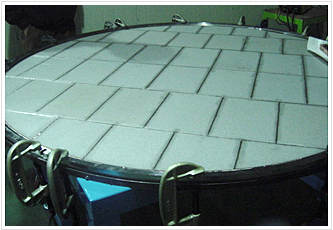

Plate Filter

  • Filter Grade: 0.5 - 200m
  • square Plate type
  • Standard size: 200 x 300(mm) x 3t

Disc Filter

  • Filter Grade: 0.5, 1, 3, 5, 7, 10, 15, 20, 30, 50, 100, 200μm
  • External diameter (OD) range: 01.30~316.0mm
  • Thickness (T) range: 1.5~72.0 (T)mm

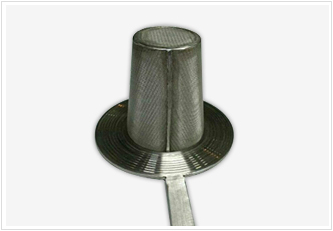

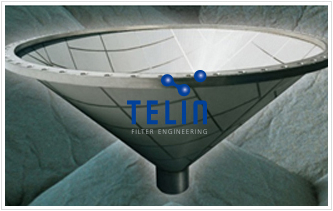

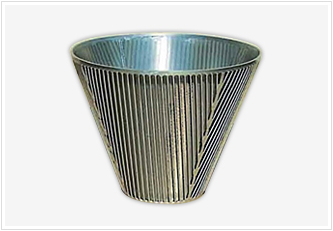

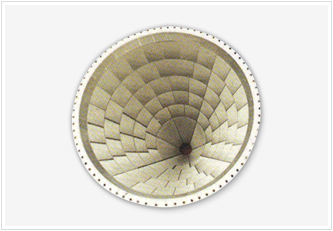

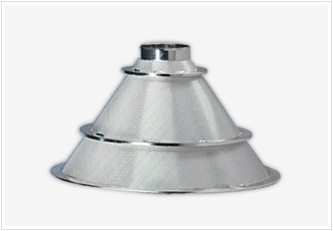

Cone Filter & Housing

  • Size: oder made is available
  • Effective fluidizing of fine powder
    Customization available according to user's needs
  • Production possible according to filter media type
    • Type 1 - Porous sintered metal powder - Filter Grade: 0.1~200 μm
    • Type 2 sintered mesh - Filter Grade: 0.5 ~ 200 μm
    • Type 3 - Porous sintered metal fiber - Filter Grade: 2 ~ 100 μm

Disc Filter

  • Filter Grade: 0.5, 1, 3, 5, 7, 10, 15, 20, 30, 50, 100, 200μm
  • External diameter (OD) range: 01.30~316.0mm
  • Thickness (T) range: 1.5~72.0 (T)mm

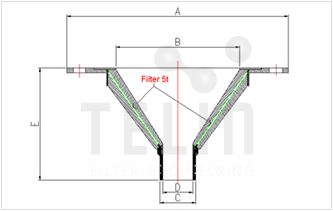

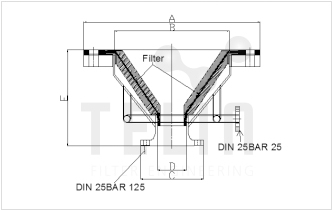

Dimension
(MM)		 Code No. Allowable
Pressure
(bar)		 Material
TL-C-600 TL-C-755 TL-C-900 25 · Filter
: SUS316L
· Rib
: SUS304
· Housing
: SUS304
A 600 755 900
B 300 493.11 600
C 220 270 300
D 100 123.4 150
E 300 413 500

Disc Filter

Dimension
(MM)		 Code No. Allowable
Pressure
(bar)		 Material
TL-C-600 TL-C-755 TL-C-900 25 · Filter
: SUS316L
· Rib
: SUS304
· Housing
: SUS304
A 600 755 900
B 300 493.11 600
C 220 270 300
D 100 123.4 150
E 300 413 500

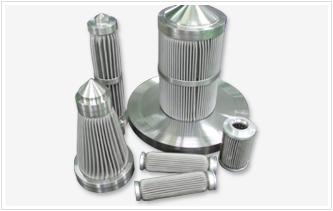

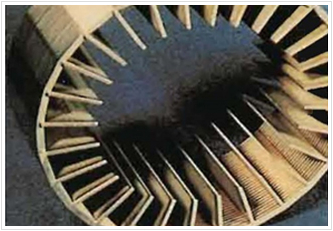

  • Pleated Filter
  • Tube Filter
  • Filter Grade: 2, 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 80, 100μm
  • Length: Manufacturing various length depend on specification
  • Thickness: 0.4~0.8mm
  • Filter Media material: SUS316L, Hastelloy, Monel, Fe Co Al Alloy
  • Temperature: SUS316L-400°C
  • Securing wide filtering extent in narrow space
  • Perfect filtering efficiency
  • Heat-resisting, corrosion resistant (Suitable for filtering fluid with high viscosity)
  • Maximum driving temperature: 400°C (SUS316L)
  • Oil chemical, film manufacturing industry, synthetic fiber, synthetic resin, oil refining industry, power plant, nuclear energy, aviation / space water treatment industry, food manufacturing industry, drug industry etc.

Standard Product code and specification

Filter Grade: 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 80, 100μm

Classification Externaldiameter(mm) Length(mm)
10'(250mm) 20'(500mm) 30'(750mm) 40'(1000mm)
Product code
1 Ø25 TFPL-25250 TFPL-25500 TFPL-25750 TFPL-251000
2 Ø35 TFPL-35250 TFPL-35500 TFPL-35750 TFPL-351000
3 Ø65 TFPL-65250 TFPL-65500 TFPL-65750 TFPL-651000
4 Ø85 TFPL-85250 TFPL-85500 TFPL-85750 TFPL-851000
* Customizing for nonstandard size is available

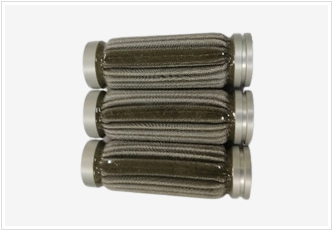

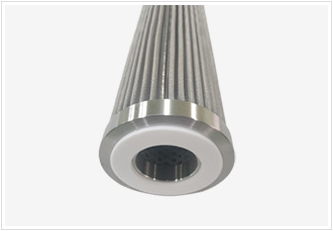

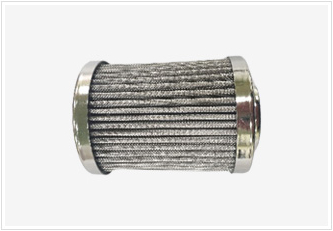

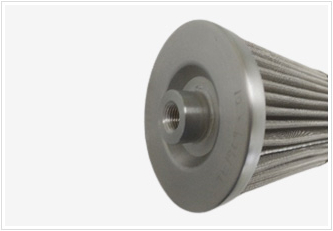

Pleated Filter

  • Filter Grade: 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 80, 100μm
  • External diameter range : Ø13~
  • Height of pleat: 7~15mm
  • Length: Order made is available
    Filtering space maximization

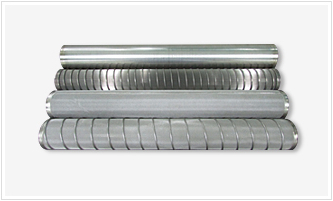

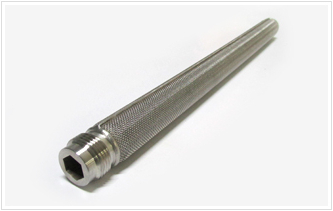

Tube Filter

  • Filter Grade: 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 80, 100m
  • External diameter range : Ø13~
  • Length: Order made is available
    Effective Back flushing
  • Tube Filter
  • Leaf Disc Filter
  • Disc Filter or Plate Filter
  • FilterGrade: 0.5, 2, 3, 5, 10, 15, 20, 40, 75, 100, 150, 200μm
  • Length: Manufacturing various length depend on specification.
  • Thickness: Average 1.7mm
  • Filter Media material: SUS316L is used mainly. Special material MONEL, INCONEL are supplied through special Customized production
  • Temperature: SUS316L - 400°C
  • Outstanding porosity
  • Outstanding filtering efficiency
  • high heat-resisting and corrosion resisting (Suitable for high viscosity fluid filtering)
  • Outstanding strength and durability
  • Oil chemical, film manufacturing industry, synthetic fiber, synthetic resin, oil refining industry, power plant, nuclear energy, aviation / space water treatment industry, food manufacturing industry, drug industry etc.

Standard Product code and specification

Classification External diameter(mm) Length(mm)
10' (250mm) 20'(500mm) 30'(750mm) 40'(1000mm)
Product code
1 Ø25 TSTU-25250 TSTU-25500 TSTU-25750 TSTU-251000
2 Ø65 TSTU-65250 TSTU-65500 TSTU-65750 TSTU-651000
3 Ø100 TSTU-100250 TSTU-100500 TSTU-100750 TSTU-1001000
* Customizing for nonstandard size is available

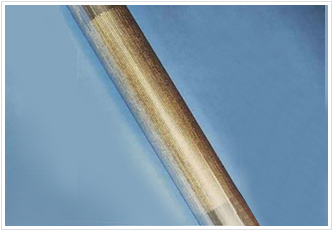

Tube Filter

  • Filter Grade: 0.5, 2, 3, 5, 10, 15, 20, 40, 75, 100, 150, 200μm
  • FExternal diameter range : Ø14~
  • FLength: Order made is available

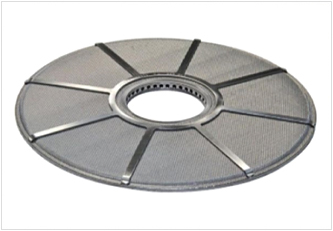

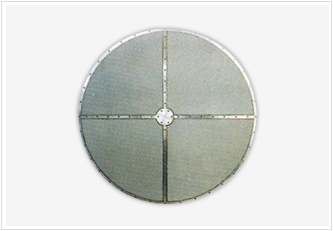

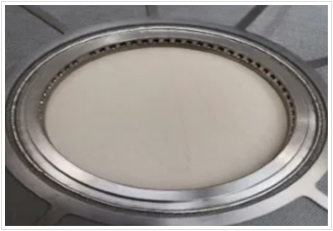

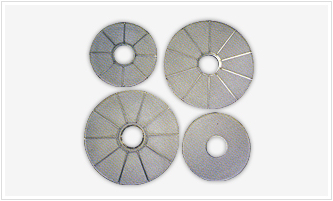

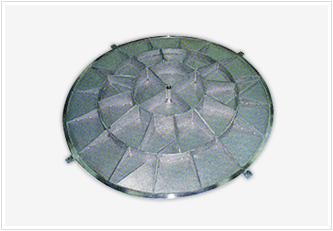

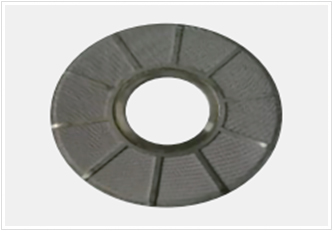

Leaf disc Filter

  • Filter Grade: 1 ~ 150μm
  • External diameter range : 6.5", 7, 8, 10, 12"

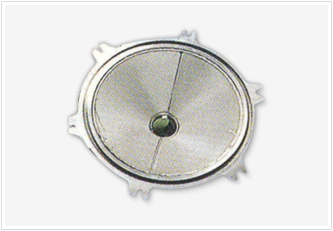

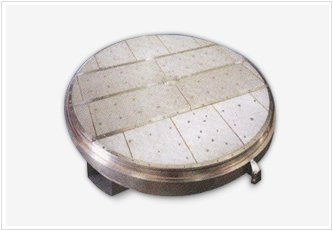

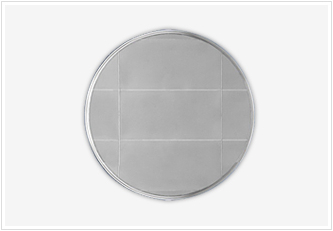

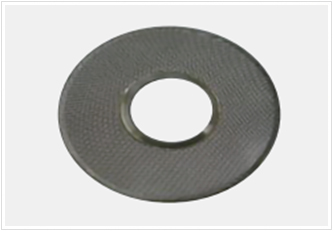

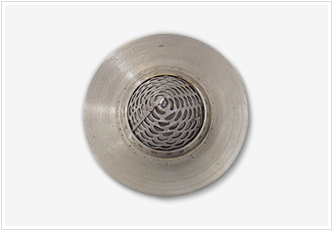

Disc Filter or Plate Filter

  • A wheel shaped Disc that is inserted to the processing
    External diameter(OD) range: 05.0~1,000mm
  • Manufacturing plate form with different type
    is available depend on specification
  • Tube Filter
  • Disc Filter or Plate Filter
  • Filter Grade: Economical filter with various Micron
  • Length: various Length of filter depend on customer's specification
  • Filter Media material: mesh, zinc net, SUS316L, SUS304, Hastelloy, MONEL etc.
  • Temperature: SUS316L - 400°C
  • Economic efficiency
  • Various filter manufacturing
  • Flexible manufacturing depend on production process
  • Outstanding strength and durability
  • Regenerate industry, industry process with high viscosity, and screen change process etc.

Standard Product code and specification

Manufacturing with filter by crimpling to enlarge filtering space

  • Manufacturing with filter by crimpling to enlarge filtering space
  • Applicable micro: 8μm ~ 300m
Classification External diameter(mm) Length(mm)
10' (250mm) 20'(500mm) 30'(750mm) 40'(1000mm)
Product code
1 Ø25 TSTU-25250 TSTU-25500 TSTU-25750 TSTU-251000
2 Ø65 TSTU-65250 TSTU-65500 TSTU-65750 TSTU-651000
3 Ø100 TSTU-100250 TSTU-100500 TSTU-100750 TSTU-1001000
* Customizing for nonstandard size is available

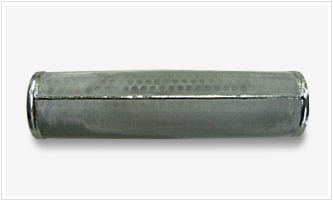

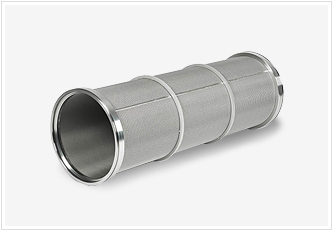

Tube Filter

  • Filter Grade: 8~300mm
  • External diameter range : Ø13~
  • Length: Order made is available

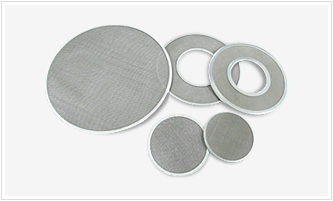

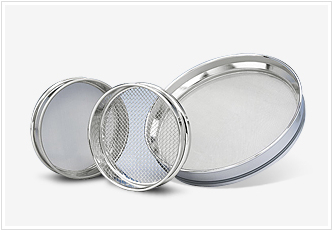

Disc Filter or Plate Filter

  • Process with wheel shaped disc and insert to the processing
    External diameter range: 05.0~1,000mm
  • Manufacturing plate form with different type
    is available depend on specification.

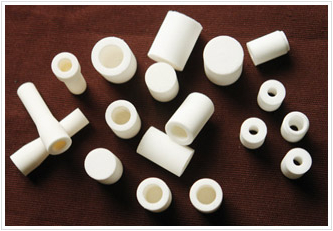

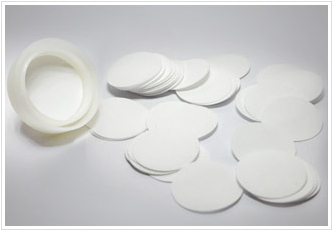

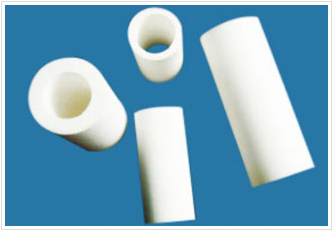

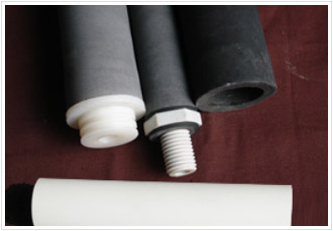

PE/PTFE FILTER

  • SEAMLESS TUBE
  • DISC
  • SHEET
  • CUP
  • Filter Grade: 0.3~100m
  • Temperature: Up to 80°C
  • Resistant to corrosive processes
  • Precision chemicals
  • Pharmaceuticals and food industries
  • Semiconductor, water treatment, and defense industries, among others

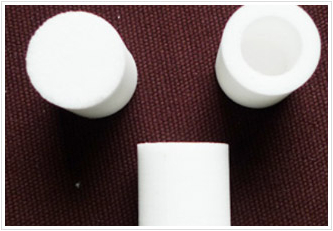

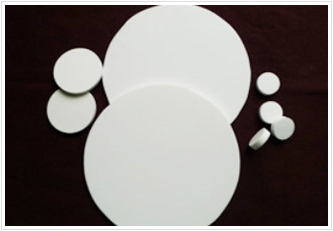

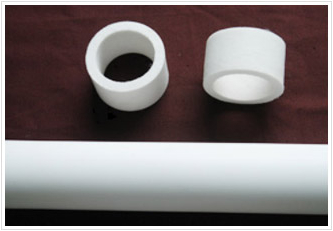

PTFE POROUS FILTER

  • SEAMLESS TUBE
  • DISC
  • SHEET
  • CUP
  • Filter Grade: 0.3~100μm
  • Temperature: Up to 200°C
  • Abrasion and corrosion resistance
  • Ultraclean
  • Pharmaceutical and food industries
  • High-purity semiconductor processes
  • Vacuum, space, and aerospace industries, among others

SELF-SEALING FILTER

  • Functions similarly to a valve that automatically shuts off when fluid comes into contact
  • Ultraclean
  • Used in hospital waste collection bottles, urine bags, etc.
  • Also used in containers for cosmetics, household goods, and other consumer products

AUTO-LIQUID-STOP MEMBRANE

  • Widely used in injections
    (Used to prevent liquid flow when transfusion is complete)
  • Widely used outside the medical industry
  • Tube Filter
  • Plate Filter
  • Cylinder Filter
  • Cone Filter
  • Filter Material: Metallized Wire, Mesh, Nonwoven+Mesh, Glass Fiber
  • Filter Grade: 2μm~ Filters capable of various micron sizes
  • Filter Media material: Hastelloy, Monel, SUS316L, SUS304, Glass fiber, PE, PP
  • Temperature: SUS316L - 400°C
  • Wide filtration area can be achieved in narrow spaces
  • Heat-resistant, corrosion-resistant (capable of filtering high-viscosity oils)
  • Maximum operating temperature: Up to 400°C
  • Universal processing machines. Used in thermal and nuclear power, petrochemical, aerospace, marine, generator, gas turbine, boiler lubrication systems, oil purification, etc.

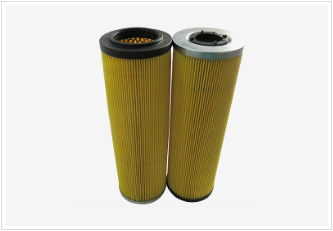

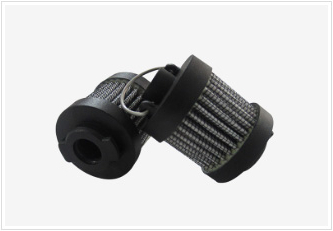

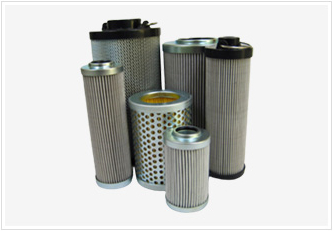

What is an oil filter?

An oil filter is a filter designed to remove contaminants from lubricating oil or hydraulic oil.
Its main purpose is to be used internally and externally in combustion engines such as aircraft, ships, generators, and pumps.
Additionally, oil filters are used in various types of hydraulic machinery.
The petroleum industry itself utilizes filters for petroleum production, petroleum pumping, and petroleum recycling.

Order Made Filter

Machining Oil Filter

Lube Oil Filter

Ship Oil Filter

Aero-Space Oil filter

Maker Made Filter

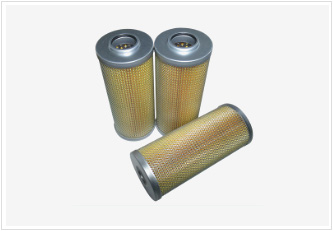

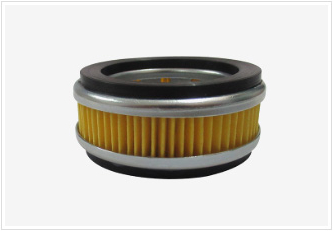

Paper Pleated Oil Filter

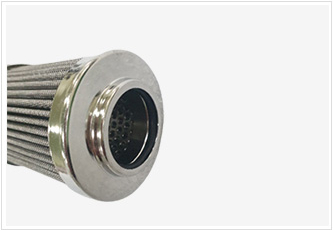

Pleated Oil Filter

Customized Paper Hydraulic Oil Filter Cartridge

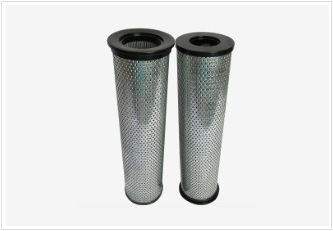

Oil Filter Cartridge

Glass Fiber Oil Filter

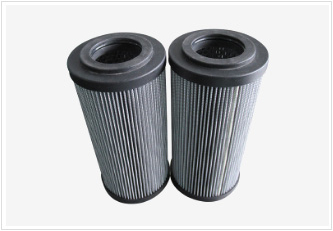

Hydraulic Oil Filter

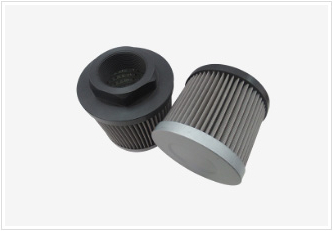

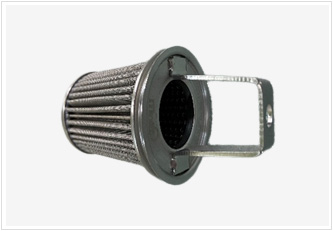

Suction Oil Filter

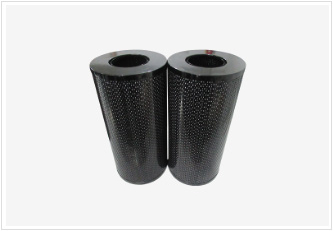

Engine Oil Filter

  • Filter Grade: 1~150Micron
  • Size: 6.5”, 7” 8”, 10”, 12” etc.
  • Filter Media material: SUS304, SUS316L etc.
  • Capable of filtering high-viscosity media and accommodating high flow rates
  • Excellent heat resistance and corrosion resistance, allowing for repeated use after cleaning
  • Enhanced efficiency in removing contaminants during cleaning due to superior cleaning power
  • Auto Free Coating System
  • High pressure polymer process

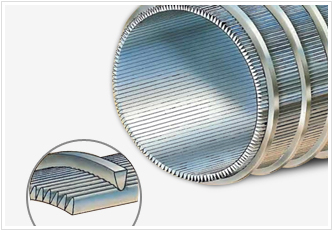

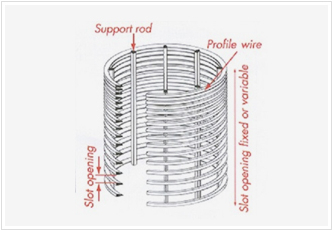

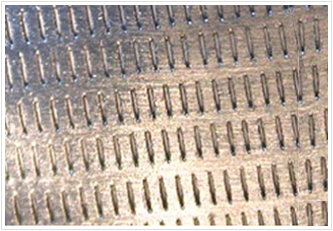

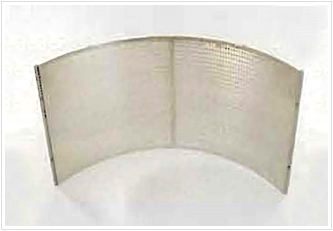

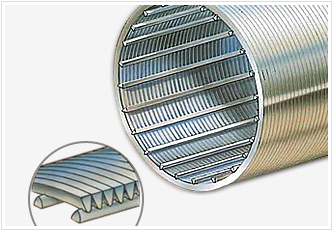

Wedge Screen

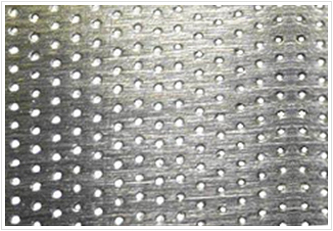

Laser Screen

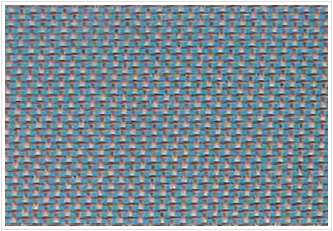

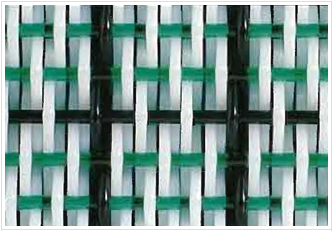

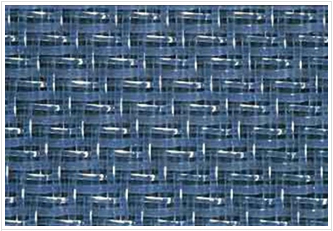

Wire Cloths

Polyester + Nylon

Polyester + Carbon

Aramid Fiber
